Mizuho OSI 5892 with 5927 Imaging Top Refurbished

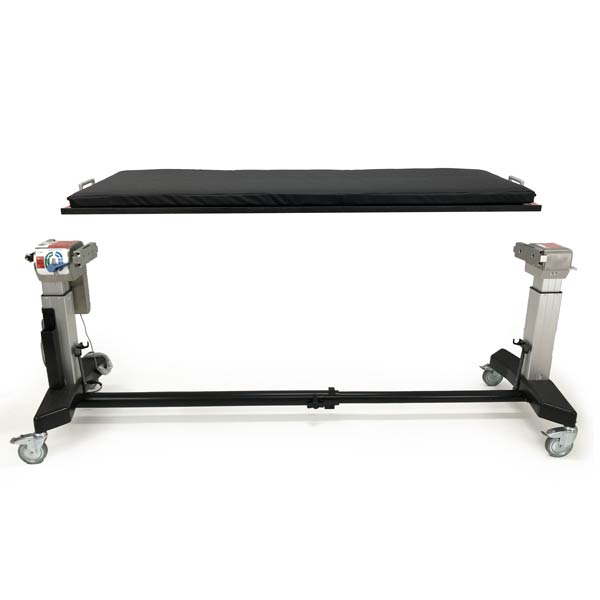

Mizuho OSI 5892 Modular Table Base with 5927 Imaging Top
The advanced control base is the primary component of the Mizuho OSI Modular Table System, designed to easily interface with a C-arm and be utilized with three, interchangeable tops which are specifically designed to support patient positioning for a variety of surgical procedures.
Specifications
Maximum patient weight: Table top specific but not to exceed 500 lbs
Height Range: 34” to 48” for orthopedic top
Trendelenburg Range: 10-11 degrees
Powered Tilt Range: 25 degrees
Compatible Tabletops: All MTS tops equipped with gimbals
Power Input: 120 VAC at 60 Hz or 230 VAC at 50 Hz and internal battery power
Overall Length: 120 in
Retracted Length: 73.5 in
Width: 30 in
Maximum tilt torque 55 ft-lb
Maximum brake torque 95 ft-lb
Duty Cycle 4% or 2.5 minutes continuously per hour
Mizuho OSI Radiolucent Imaging Top 5927 Specifications:
Height Range: 27 in- 48 in
Lateral Tilt- 25 degrees
Trendelenburg/Reverse Trendelenburg- 10 degrees
Patient Weight Capacity- 500lbs
Table Top Length- 84in
Table Top Width- 21.5in
Standard components for the radiolucent imaging top include:
• Tempur-Pedic Medical Table Top Pad (2in) 5840-7028
• Patient Safety Strap
Optional accessories that are available include a Clark Socket, Lateral Positioner, Deluxe Lateral Positioner, Universal Footboard with Tempur-pedic Medical Pad, Pelvic Reconstruction Kit Cart, and the Wilson Spine Frame (5319).
Mizuho's 5927 Imaging Top is used for many different specialties. These include:
• Anterior Cervical Surgery
• Catheter Placement
• Pelvic/Acetabular Reconstruction
• Vascular Procedures
• Kyphoplasties
• Cardiac Angioplasty
• Laminectomies
• Decompressions
• Pain Management
• Joint Imaging
• Intradiscal Electrothermal Therapy
• Myelography
