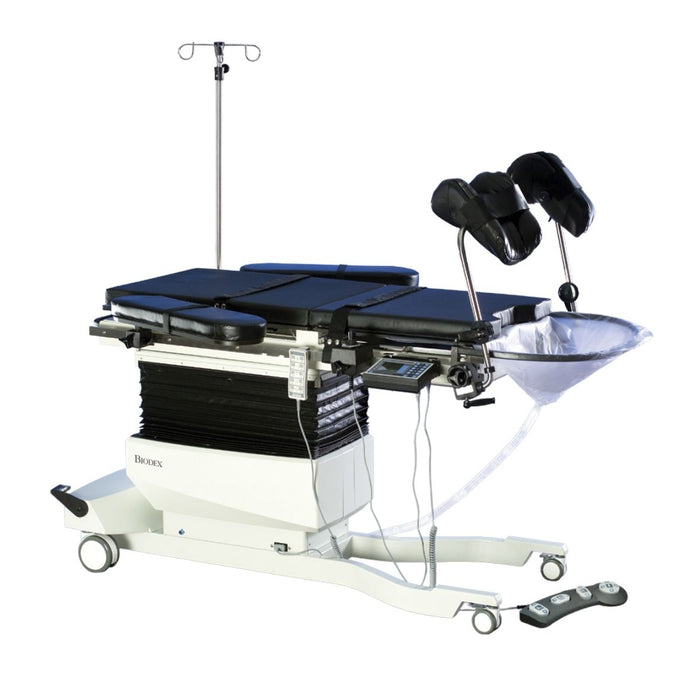

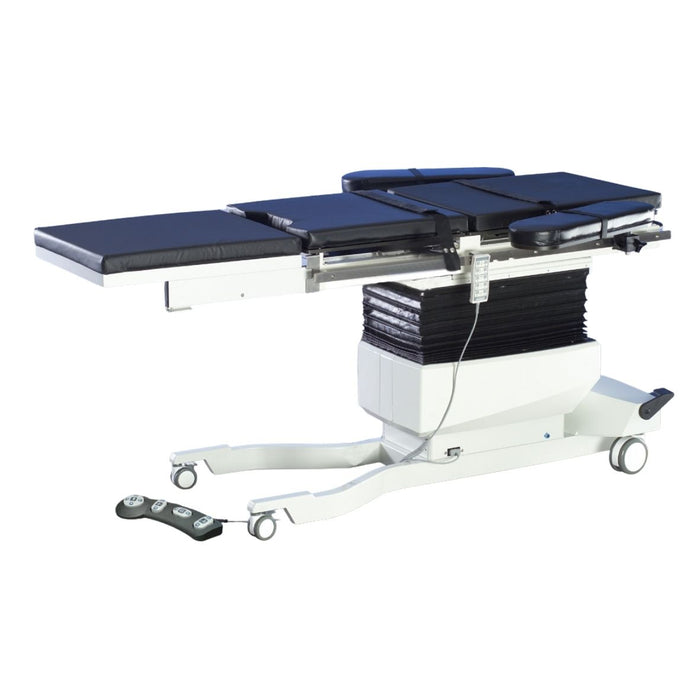

Biodex Urology C-Arm Table 800

The choice is yours... configure to meet your needs

• Widely positioned base legs  – For optimal surgeon access to patient
• Foot controller and motorized tabletop – nables hands-free adjustment during procedures
• Five-axis motorized tabletop positioning – X-Y, up/down, Trendelenburg and lateral roll
• Motorized Fowler Positioning – Industry exclusive, 0° to 80°
• 500 lb patient capacity

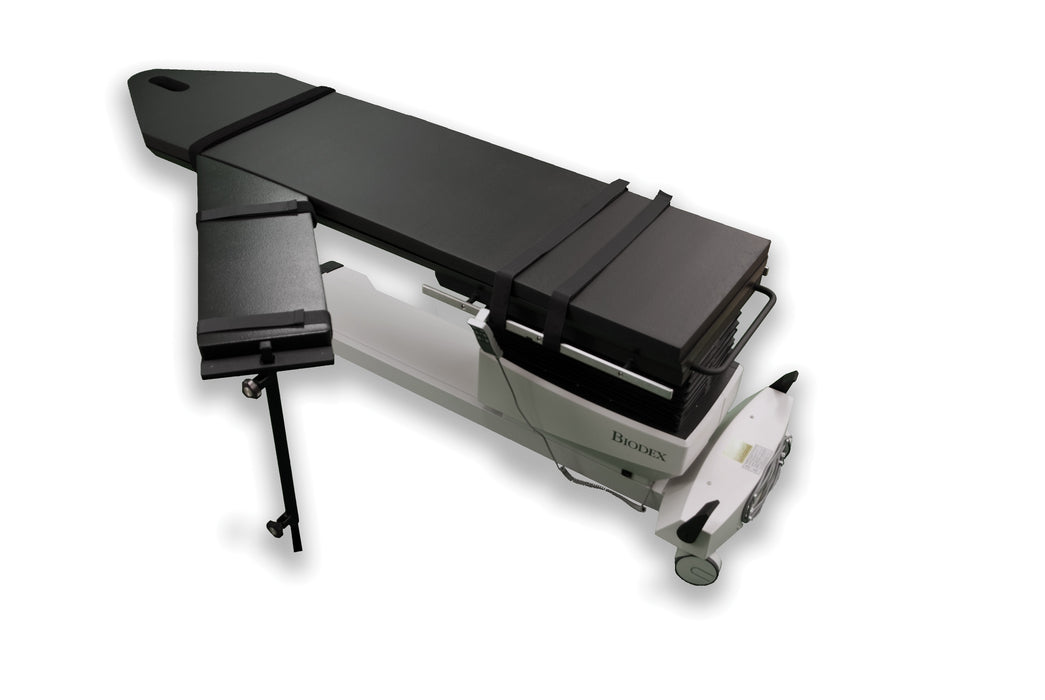

• Radiolucent Extension – Adds versatility for general surgery, pain and orthopedic use
• Precision Electric Motor Actuators – No oil or hydraulics
• Low Profile Base – For unrestricted C-Arm movement
• Accessory Rails
• AC and Battery Power – Standard

Specifications

• Dimensions: 84.5" l x 25.5" w (214.6 x 64.8 cm) with OR accessory rails
• Tabletop: 53" l x 21" w (134.6 x 53.3 cm); 84" l (213.4 cm) with extension
• Lightweight Extension (for patient transfer only, not for imaging): 26.5" l x 21" w (67.3 x 53.3 cm)
• Radiolucent Extension: 31" l x 25.5" w (78.7 x 64.8 cm) with OR accessory rails
• Radiolucent Area: 54" l x 17.5" w (137.2 x 44.5 cm)
• Tabletop Material: Three Fiberesin™ sections – each with individual 2" mattress
• Mattress: Individual, seamless, 2" thick (5 cm), one for each section
• Motions:
  - Height Adjustable: 34" to 43.5" (86.4 to 110.5 cm)
  - Tabletop X Motion (head-to-toe): 20" (51 cm)
  - Tabletop Y Motion (side-to-side): 10" (25.4 cm)
  - Trendelenburg: 0° to 20°
  - Reverse Trendelenburg: 0° to 20°
  - Lateral Roll: 0° to 20°
  - Fowler Positioning: Adjusts from 0° to 80° with touch handle lock/unlock
• Controls:
  - Hand Control: activates all motions
  - Foot Control: activates all motions
• Optional:
  - X-Ray Film Tray: Removable film cassette tray for 14" x 17" film with cassette mask for 10" x 12" film. Film cassette tray can be removed from either side of the table.
  - X-Ray Grid: Removable X-Ray grid, 103 line, 8:1 ratio
• Accessory Rails: Standard OR accessory rails 1.125" x .375" (2.86 x .95 cm) on table (rails also on table imaging extension)
• Patient Restraints: Two body straps, two ankle straps
• Finish: Powder coat
• Patient Capacity:
  - In urologic position: 500 lb (227 kg)
  - In use with radiolucent extension: 400 lb (181.4)
  - Weight tested to four times the patient load rating.
• Shipping Weight: 903 lb (409.6 kg)
• Power: 115 VAC or 230 VAC and Battery. Battery automatically charges when table is plugged in. An additional battery can be charged with optional wall-mounted charger.
• Certifications: ANSI/AAMI ES60601-1:2005 +C1 (2009) +A1 (2012) +A2 (2010); CAN/CSA C22.2 No: 60601-1:14; CAN/CSA-C22.2 NO. 60601-2-46:12; IEC 60601-1-2-46:2016.
• CDRH registered and FDA Device Listed
• Warranty: Two years parts and labor
