Biodex Surgical C-Arm Table 846
by Biodex
Free-float tabletop design with quick and comfortable patient positioning at an affordable price.
- Free-Float Tabletop – With specially-designed SmoothGlide™ movement
- Carbon-Fiber Tabletop – 0.7 mm attenuation (1.2 mm with pad) design

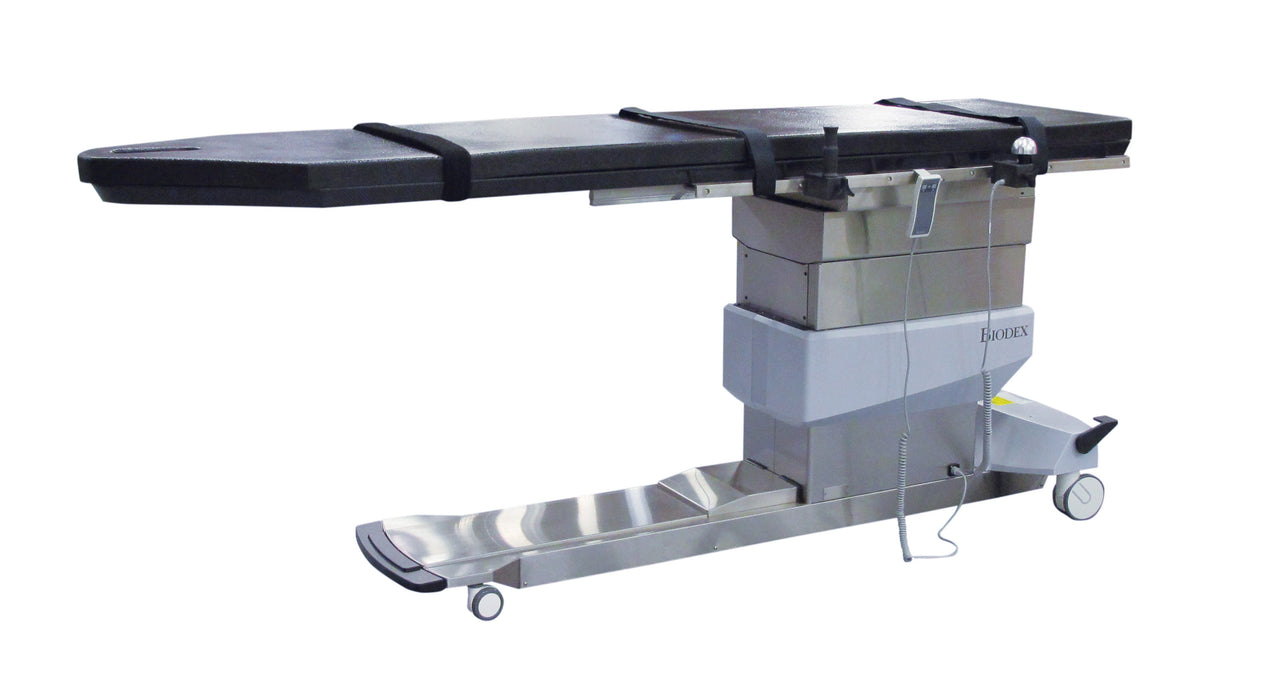

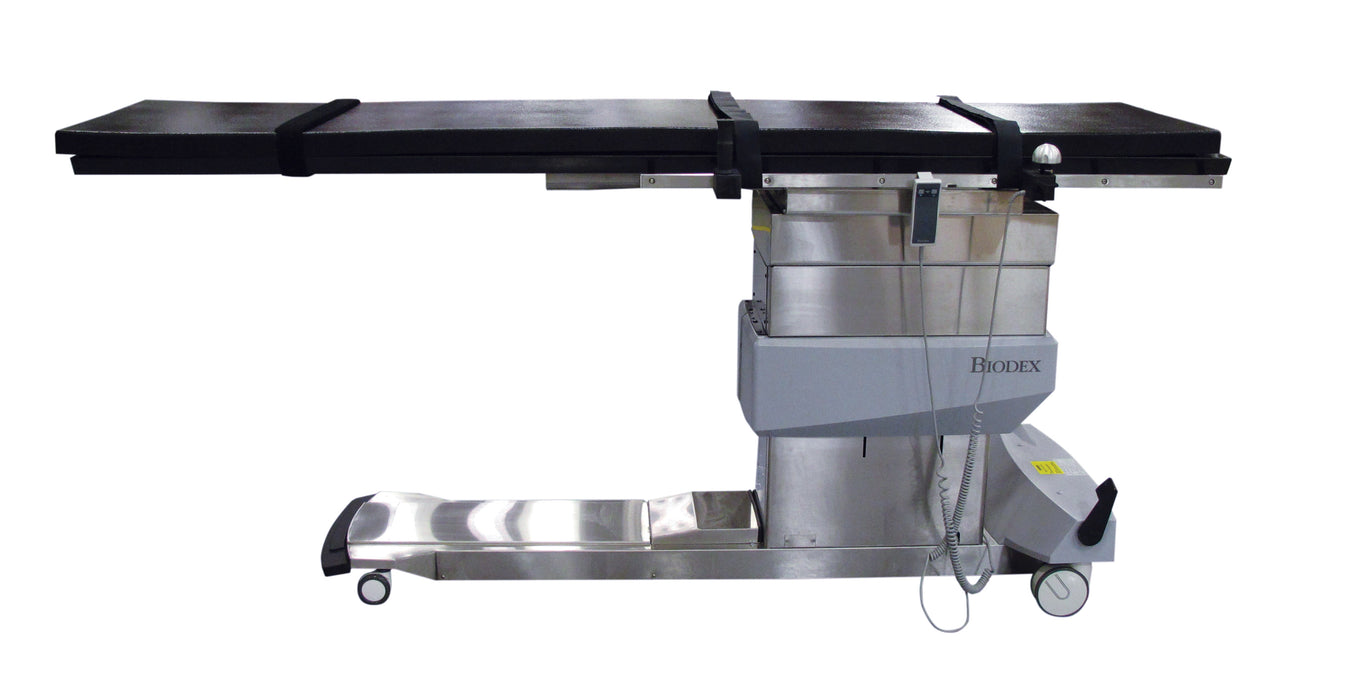

- Choice of Contoured or Rectangular Design – Contoured tabletop features a face cutout for comfortable prone positioning
- Tabletop Motion – Expansive head-to-toe, 35"
- Radiolucent Area – Extra-large, 75"
- High-Speed Actuator – For quick vertical movement
- Mushroom-Shaped Control – Ergonomic, for free-float motion
- Table Base – Encased in stainless steel, easy to clean

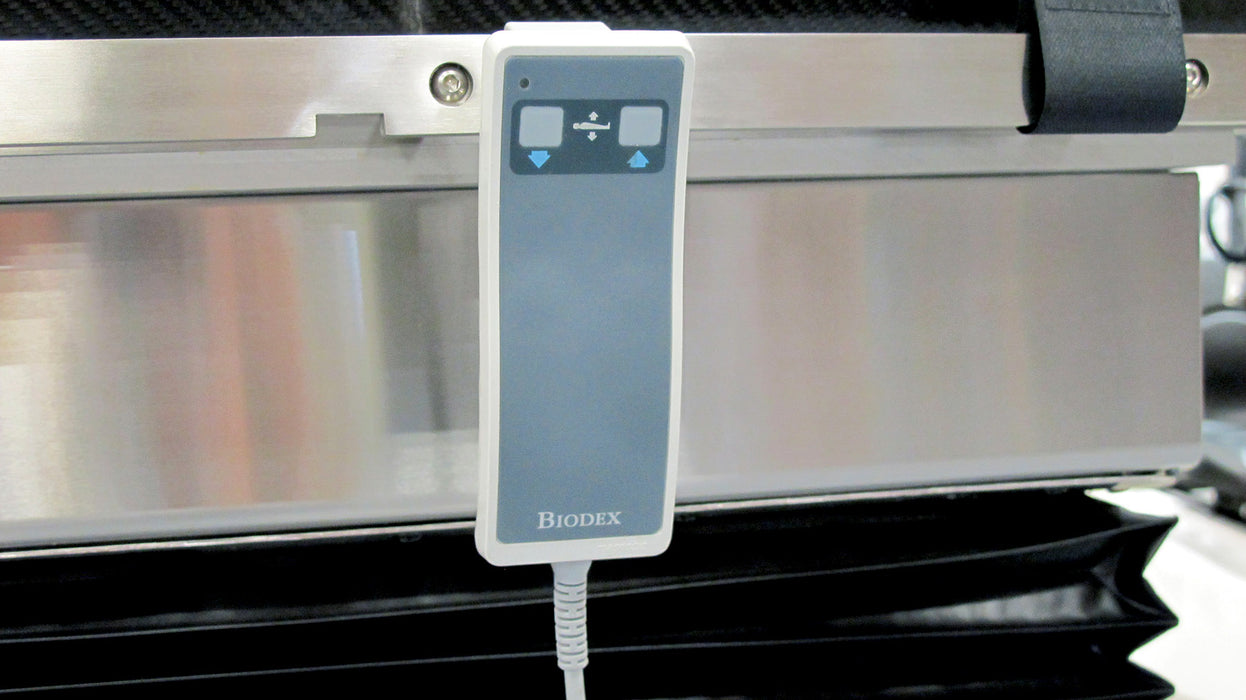

- Hand-Held Controller – For vertical movement
- Patient Capacity – 500 lb
- Low Profile Base – For unrestricted C-arm movement
- Two-inch thick table padding assures patient comfort and stability
- Accessory Rails
Specifications
- Dimensions:
- Overall: 97" l x 26" w (246 x 66 cm) with OR accessory rails
- Tabletop: 97" l x 24" w (246 x 61 cm) – choice of classic contoured or rectangular design - Radiolucent Area: 75" l x 24" w (191 x 61 cm)
- Tabletop Material: Carbon Fiber with integral head section
- Mattress: Seamless, 2" thick (5 cm)
- Attenuation: 1.2 mm Aluminum equivalence
- Motions:
- Height: Adjustable from 32" to 42" (81 to 106 cm)
- Tabletop X Motion (head-to-toe float): 35" (89 cm)
- Tabletop Y Motion (side-to-side float): 10" (25.4 cm) - Controls:
- Hand Control: activates height
- Mushroom-Top Control: releases X-Y Tabletop motions - Accessory Rails: Standard OR accessory rails 49.5" x 1.12" x .375" (124 x 2.86 x .95 cm) mounted near foot end of table
- Patient Restraints: Three body straps
- Finish: Stainless Steel
- Patient Capacity: 500 lb (227 kg)
- Shipping Weight: 800 lb (363 kg)
- Power: 115 VAC or 230 VAC
- Certifications: ANSI/AAMI ES60601-1:2005 +C1 (2009) +A1 (2012) +A2 (2010); CAN/CSA C22.2 No: 60601-1:14; CAN/CSA-C22.2 NO. 60601-2-46:12; IEC 60601-1-2-46:2016.
- CDRH registered and FDA Device Listed
- Warranty: Two years parts and labor
