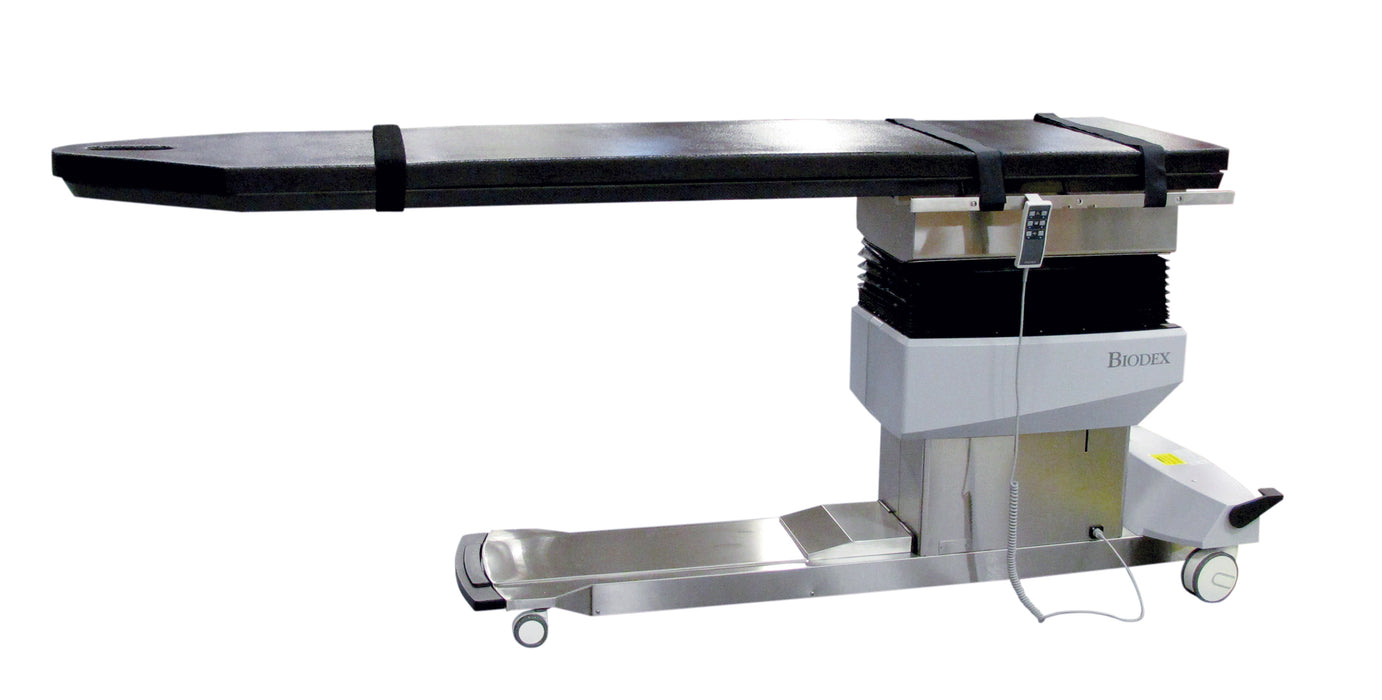

Biodex Pain Management C-Arm Table 870

by Biodex

Carbon-Fiber Tabletop – 0.7 mm attenuation (1.2 mm with pad) design
Choice of Contoured or Rectangular Design – Contoured tabletop features a face cutout for comfortable prone positioning
Radiolucent Area – Large, 70"
Isocentric Lateral Roll Motion – Maintains image center during tabletop movement, minimizing image distortion
High-Speed Actuators – Assure quick tabletop positioning, height adjustability, isocentric lateral roll and Trendelenburg motions
Table Base – Encased in stainless steel, easy to clean

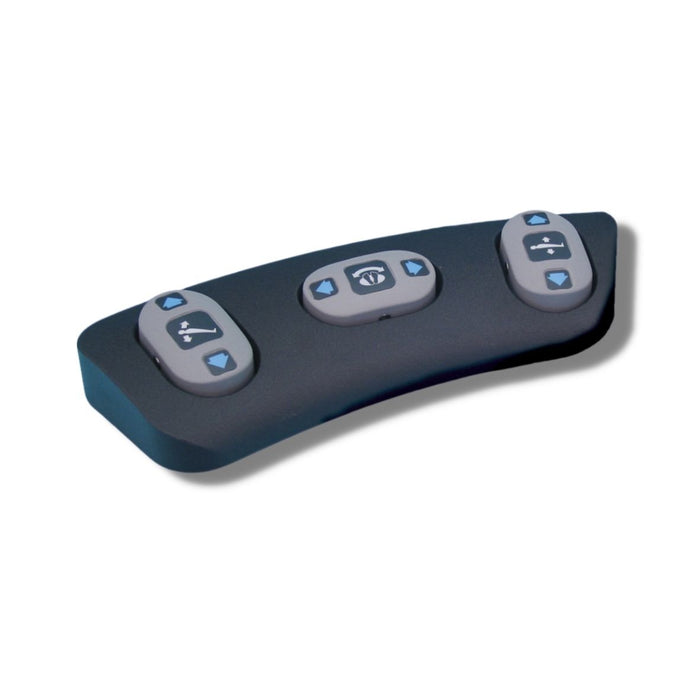

Hand and Optional Foot-Operated Controllers – For convenient positioning
Patient Capacity – 500 lb
Low Profile Base – For unrestricted C-arm movement
Accessory Rails

Specifications

Dimensions:
- Overall: 97" l x 26" w (246 x 66 cm) with OR accessory rails
- Tabletop: 97" l x 24" w (246 x 61 cm) – choice of classic contoured or rectangular design
Radiolucent Area: 70" l x 24" w (178 x 61 cm)
Tabletop Material: Carbon fiber with integral head section
Mattress: Seamless, 2" thick (5 cm)
Attenuation: 1.2 mm Aluminum equivalence
Motions:
- Height Adjustable: 29.5" to 39.5" (75 to 100 cm)
- Trendelenburg: 0° to 20°
- Reverse Trendelenburg: 0° to 20°
- Isocentric Lateral Roll: 15° clockwise or counterclockwise
Controls:
- Hand Control: activates height, isocentric lateral roll and Trendelenburg motions
- Foot Control (optional): activates height, lateral roll and Trendelenburg motions
Accessory Rails: Standard OR accessory rails 30" x 1.12" x .375" (75 x 2.86 x .95 cm) mounted near foot end of table
Patient Restraints: Three body straps
Finish: Stainless Steel
Patient Capacity: 500 lb (227 kg)
Shipping Weight: 749 lb (340 kg)
Power: 115 VAC or 230 VAC
Certifications: ANSI/AAMI ES60601-1:2005 +C1 (2009) +A1 (2012) +A2 (2010); CAN/CSA C22.2 No: 60601-1:14; CAN/CSA-C22.2 NO. 60601-2-46:12; IEC 60601-1-2-46:2016.
CDRH registered and FDA Device Listed
Warranty: Two years parts and labor
