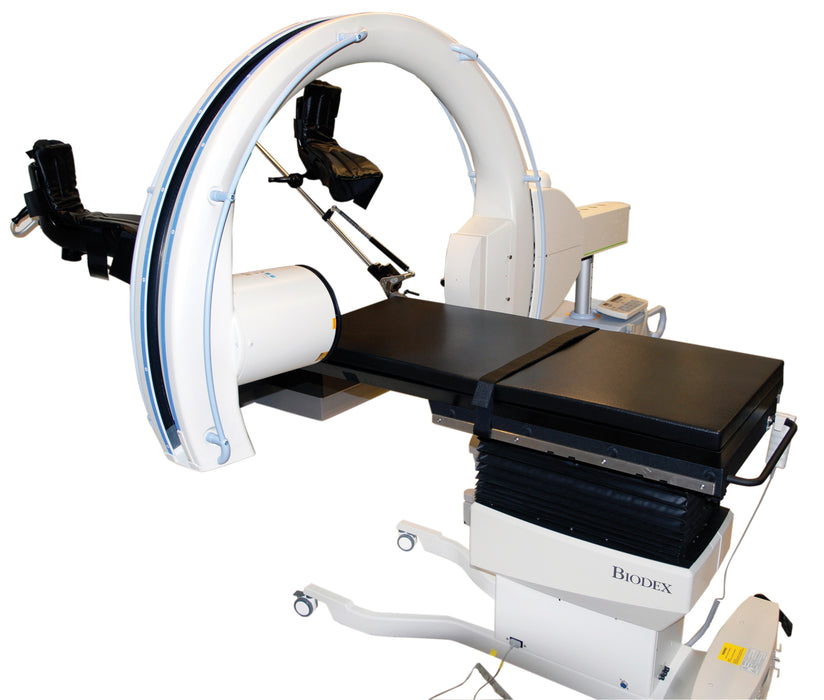

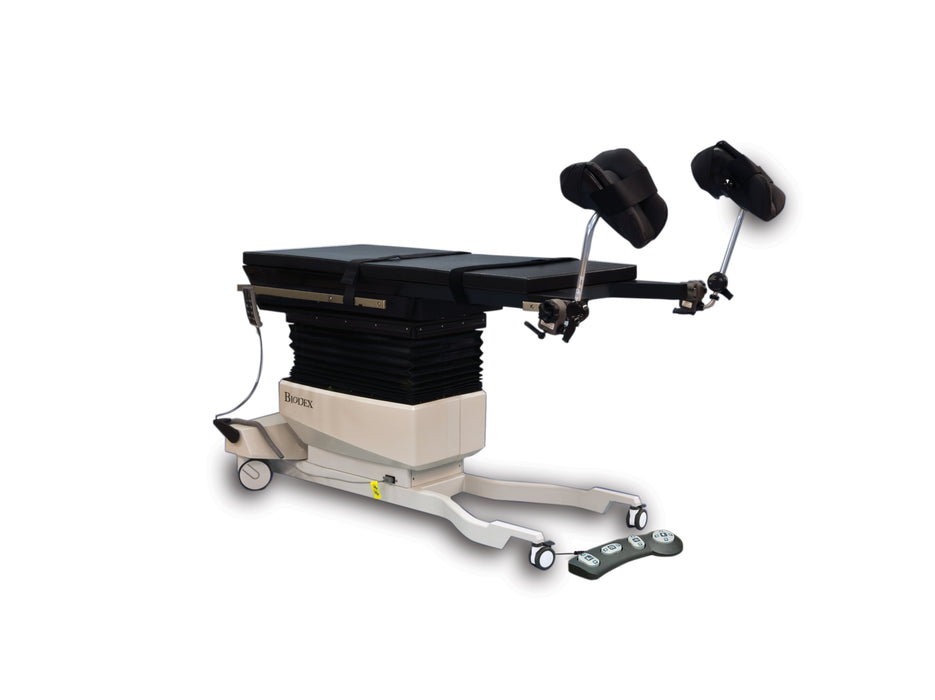

Biodex 3D Imaging C-Arm Table 820

Designed for use with a 3D C-Arm and Mobile CT Scanners

• Radiolucent Area – total length, 51.5"
• Exceptional Platform – For brachytherapy and 3D urology procedures
• Head and Foot Extensions – Ideal for imaging of breast and thorax
• Tabletop Positioning – Motorized, five-axis
• Stepper Positioning – Accessory rail easily accommodates
• Hand and Foot-Operated Controllers – For convenient positioning
• Low Profile Base – For unrestricted C-arm movement
• Accessory Rails – Easily accommodates stepper positioning
• AC and Battery Power – Standard

Specifications

• Dimensions: 103.75" l x 26" w (264 x 66 cm) with OR accessory rails
• Tabletop: 103.75" l x 24" w (264 x 61 cm) includes head and leg extension
• Radiolucent Area:
  - 3D Imaging Area: 22.5" l x 24" w (57.1 x 61 cm)
  - Radiolucent Extension (Fiberesin™, non-3D): 29" l x 22.5" w (73.6 x 57.1 cm)
• Total Radiolucent Area (Combined): 51.5” l x 24” w (131 x 61 cm)
• Head-End Extension (non viewable): 18.2" l x 24" w (46 x 51 cm)
• Tabletop Material: Carbon fiber
• Mattress: Vinyl covered, seamless, 2" thick (5 cm)
• Motions:
  Height Adjustable: 34" h to 44" h (86 to 112 cm)
  Tabletop X Motion (head to toe): 10" (25 cm)
  Tabletop Y Motion (side to side): 10" (25 cm)
  Trendelenburg: 0° to 20°
  Reverse Trendelenburg: 0° to 20°
  Lateral Roll: 0° to 20°
• Controls:
  - Hand Control: activates all motions
  - Foot Control: activates all motions
• Accessory Rails: Standard OR accessory rails, 1.125" x .375" (2.86 x .95 cm). Head-End 30" l (75 cm)
• Foot-End 7.75" l (20 cm)
• Patient Capacity: 500 lb (227 kg); weight tested to four times the patient load rating.
• Power: 115 VAC or 230 VAC and Battery. Battery automatically charges when table is plugged in. An additional battery can be charged with optional wall-mounted charger.
• Weight: 542 lb (246 kg)
• Shipping Weight: 700 lb (318.1 kg)
• Certifications: ANSI/AAMI ES60601-1:2005 +C1 (2009) +A1 (2012) +A2 (2010); CAN/CSA C22.2 No: 60601-1:14; CAN/CSA-C22.2 NO. 60601-2-46:12; IEC 60601-1-2-46:2016.
• CDRH registered and FDA Device Listed
• Warranty: Two years parts and labor
